Established in 1951, Guangxi Yuchai Machinery Co., Ltd. is headquartered in Yulin City, Guangxi and has 9 subsidiaries. Its production bases are located in Guangxi, Jiangsu, Anhui, Shandong, and other places. It is one of the diesel engine manufacturers in China and a complete range of internal combustion engine production bases. Guangxi Yuchai's products include diesel engines, gas engines, hybrid systems, and pure electric systems. With the characteristics of high power, high torque, high reliability, low fuel consumption, low noise, low emissions, and strong adaptability, and a professional segmented market, it has become a necessary supporting power for major domestic trucks, buses, engineering machinery, agricultural machinery, marine electrical machinery, specialized vehicles, passenger cars, and other vehicles, providing strong power for economic development. Yuchai has become one of Comler's important win-win strategic partners.
Engine performance:

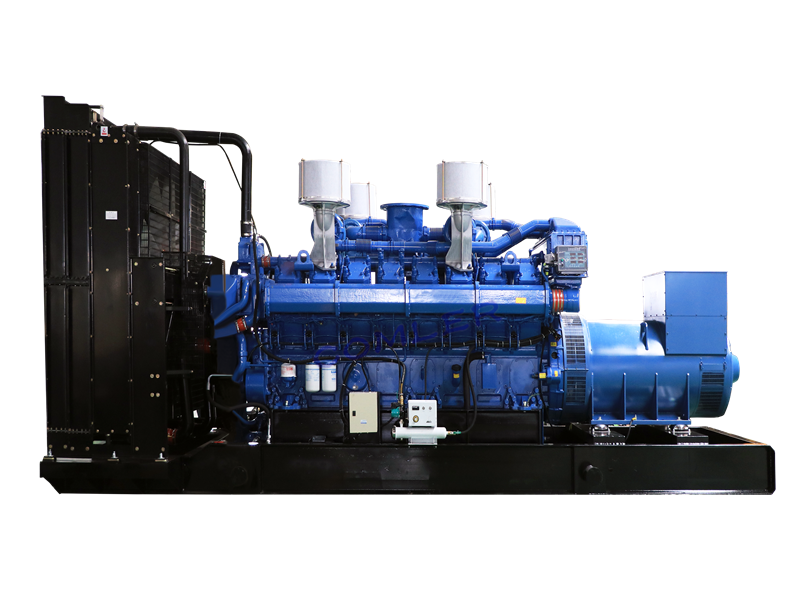

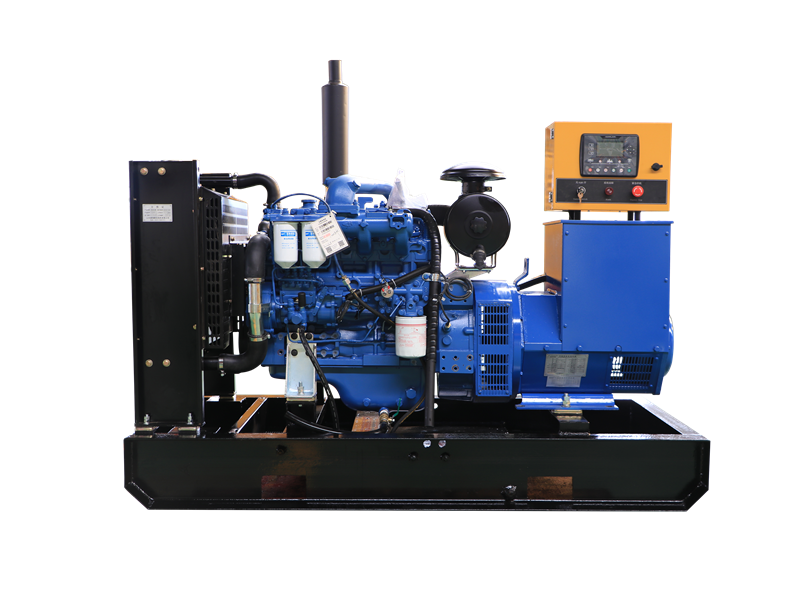

The diesel generator set is equipped with a full range of high-performance COMLER generators, Yuchai engines, etc. The superior overall technical design, production and assembly are more in line with the technical requirements of international standards, and the technical design defects of the assembled unit are abandoned.
The constant pressure control system and high salinity treatment are all configured according to international standards. It has the characteristics of more convenient operation, higher efficiency, lower fuel consumption, longer service life, and low-carbon environmental protection. A comprehensive maintenance service system and respected international brands will provide customers with better services and contribute to the overall technological development and progress of China's electromechanical industry.
(For reference only, subject to actual product)
Introduction to Comler Generators:
1. The Comler (four pole 1500/1800r/min) series brushless three-phase AC synchronous generator adopts a unique forming hard coil winding process and VPI vacuum pressure impregnation technology to insulate the winding stator and rotor, greatly improving the insulation strength between turns and phases of the generator, ensuring the operational reliability of the generator and further improving its service life;
2. The overall salient pole rotor has a solid winding and a unique iron core ventilation structure. After special treatment, the winding has good heat dissipation effect, and is equipped with a fully damped winding for stable parallel operation;
3. Steel plate frame, overall firm and reliable, with novel design;
4. High automatic voltage regulation accuracy, with the characteristics of low speed protection and reliable differential adjustment during parallel operation. The overall sealing process, three protections, and anti vibration performance are good;
5. According to different installation requirements, there are two types of structures: single bearing and double bearing. The single bearing structure adopts the international SAE standard flywheel interface and connecting plate connection, and non-standard connections can also be customized; The transmission end cover of the double bearing structure comes in three forms: flange cover, integrated cover, and ordinary cover.
6. High performance AVR voltage regulator, even under distorted load conditions, has the characteristics of low speed protection and reliable differential adjustment during parallel operation. The overall sealing process, three protections, and anti vibration performance are good;
1) Adaptability to various environments, particularly suitable for harsh environments such as landfills, sewage treatment plants, coalbed methane, and oil fields.
2) The optimized winding design ensures better performance regardless of whether it is at 50Hz or 60Hz. There are various winding forms to adapt to the voltage requirements of different usage scenarios. The standard design of the generator stator winding has good performance under distorted load conditions.
3) High electrical efficiency ensures that the unit provides more electrical energy.
4) Widely used: telecommunications and internet services; Parallel operation of generator sets; In the field of renewable energy, such as landfills and sewage treatment plants; Coal seams, oil fields, and natural gas fields.
5) A reliable AVR voltage regulator can ensure a qualified voltage regulation rate even under distorted load conditions, and also improve the anti-interference ability of the generator.
radiator
The diesel engine is equipped with a 52 degree radiator and is cooled by water. It can still operate efficiently under full load and high temperatures, making it suitable for operation in low latitude tropical regions.
Controller: Configurable Comler's fifth generation interconnected microcomputer intelligent power supply system, UK deep-sea DSE7320
1. Microcomputer operation template, LCD display, with backlight, achieving unit self start and self stop functions.
2. With four protection functions, the city power has overvoltage, undervoltage, and missing item detection functions, while the power generation has overvoltage, undervoltage, overfrequency, and overcurrent detection functions.
3. Support multiple types of engines, display various parameters of the engine, generator, and generator set, and provide shutdown protection when the values are unstable.
4. Upgrade the software version, customers can upgrade the firmware version according to their needs to meet technical requirements.
5. Language: The control system supports 13 languages, meeting the needs of customers in different languages.
6. Four sets of working modes and protection parameters can be set.
7. It can preset the operating time (the unit can be started regularly for maintenance and operation) and maintenance cycle function (the engine needs to be replaced with three filters after running for 250 hours)
8. Remote monitoring of the system can be achieved: RS485 transmission distance can reach 1200 meters. DSE7320+DSE890 enables global network monitoring
9. Reserve automation interfaces, and the microcomputer control system has a system that can achieve automation functions.
base
The base is produced using a sheet metal assembly line, calibrated by a balance instrument, and the entire unit is placed on a steel frame base. It is equipped with a dedicated shock absorption device for the unit, ensuring smooth and reliable operation, and making maintenance more convenient.
Introduction to technical parameters of Yuchai series (10kw-2200kw):
Model | Unit brand | Oil engine model | Common power of oil engine | Speed Control | Oil engine brand | rated voltage(V) | Rated current(A) | Power factor | frequency(HZ) | speed(r/min) | Overall dimensions(mm) | weight(KG) |
COMLER10KW | Comler | 4D24G6 | 18.5KW | Electrically controlled VP pump | Yuchai | 400/230 | 18 | 0.8 | 50 | 1500 | 1500*650*1055 | 550 |
COMLER15KW | Comler | 4D24G6 | 18.5KW | Electrically controlled VP pump | Yuchai | 400/230 | 27 | 0.8 | 50 | 1500 | 1500*650*1055 | 550 |
COMLER20KW | Comler | 4D24G7 | 23KW | Electrically controlled VP pump | Yuchai | 400/230 | 36 | 0.8 | 50 | 1500 | 1500*650*1055 | 550 |
COMLER25KW | Comler | 4D24TG2 | 28KW | Electrically controlled VP pump | Yuchai | 400/230 | 45.1 | 0.8 | 50 | 1500 | 1500*650*1055 | 580 |
COMLER30KW | Comler | 4D24TG0 | 36KW | Electrically controlled VP pump | Yuchai | 400/230 | 54.1 | 0.8 | 50 | 1500 | 1500*650*1055 | 600 |
COMLER40KW | Comler | YCD4V33H6-75 | 50KW | Electronically controlled Common rail | Yuchai | 400/230 | 72.1 | 0.8 | 50 | 1500 | 1800*750*1150 | 800 |
COMLER50KW | Comler | YC4D90-D34 | 60KW | Electronically controlled Common rail | Yuchai | 400/230 | 90.2 | 0.8 | 50 | 1500 | 1900*800*1295 | 850 |
COMLER80KW | Comler | YC4D140-D31 | 100KW | Electronically controlled Common rail | Yuchai | 400/230 | 144.3 | 0.8 | 50 | 1500 | 1900*800*1395 | 1080 |
COMLER100KW | Comler | YC4A165-D30 | 110KW | Electronically controlled Common rail | Yuchai | 400/230 | 180.4 | 0.8 | 50 | 1500 | 2410*900*1340 | 1100 |
COMLER110KW | Comler | YC4A190-D30 | 125KW | Electronically controlled Common rail | Yuchai | 400/230 | 198.4 | 0.8 | 50 | 1500 | 2410*900*1340 | 1350 |
COMLER120KW | Comler | YCD6Q23H8-210 | 140KW | Electronically controlled Common rail | Yuchai | 400/230 | 216.5 | 0.8 | 50 | 1500 | 2600*940*1640 | 1500 |
COMLER150KW | Comler | YCD6Q33H6-260 | 190KW | Electronically controlled Common rail | Yuchai | 400/230 | 270.6 | 0.8 | 50 | 1500 | 2600*960*1650 | 1600 |
COMLER170KW | Comler | YCD6Q33H6-260 | 190KW | Electronically controlled Common rail | Yuchai | 400/230 | 306.7 | 0.8 | 50 | 1500 | 2600*960*1650 | 1700 |
COMLER200KW | Comler | YCA08350-D30 | 235KW | Electronically controlled Common rail | Yuchai | 400/230 | 360.8 | 0.8 | 50 | 1500 | 2600*1100*1640 | 2100 |
COMLER250KW | Comler | YC6MK420-D30 | 281KW | Electronically controlled Common rail | Yuchai | 400/230 | 451 | 0.8 | 50 | 1500 | 3150*1140*1766 | 2500 |
COMLER300KW | Comler | YC6MJ500-D30 | 334KW | Electronically controlled Common rail | Yuchai | 400/230 | 541.2 | 0.8 | 50 | 1500 | 3150*1140*1766 | 3000 |
COMLER350KW | Comler | YC6K600-D30 | 401KW | Electronically controlled Common rail | Yuchai | 400/230 | 631.4 | 0.8 | 50 | 1500 | 3300*1230*1745 | 3400 |
COMLER400KW | Comler | YC6K660-D30 | 441KW | Electronically controlled Common rail | Yuchai | 400/230 | 721.7 | 0.8 | 50 | 1500 | 3300*1230*1745 | 3500 |
COMLER450KW | Comler | YC6TD780-D31 | 520KW | electronic unit pump | Yuchai | 400/230 | 811.9 | 0.8 | 50 | 1500 | 3700*1450*2000 | 4500 |
COMLER500KW | Comler | YC6TD840-D31 | 561KW | electronic unit pump | Yuchai | 400/230 | 902.1 | 0.8 | 50 | 1500 | 3700*1450*2000 | 5200 |
COMLER550KW | Comler | YC6TD900-D31 | 605KW | electronic unit pump | Yuchai | 400/230 | 992.3 | 0.8 | 50 | 1500 | 3700*1450*2000 | 5300 |
COMLER600KW | Comler | YC6TD1000-D30 | 668KW | Electronically controlled Common rail | Yuchai | 400/230 | 1082.5 | 0.8 | 50 | 1500 | 3700*1840*2150 | 5600 |
COMLER650KW | Comler | YC6TH1070-D31 | 715KW | electronic unit pump | Yuchai | 400/230 | 1172.7 | 0.8 | 50 | 1500 | 4450*2000*2300 | 7000 |
COMLER730KW | Comler | YC6TH1220-D31 | 815KW | electronic unit pump | Yuchai | 400/230 | 1317.1 | 0.8 | 50 | 1500 | 4450*2000*2300 | 7600 |
COMLER800KW | Comler | YC6TH1320-D31 | 880KW | electronic unit pump | Yuchai | 400/230 | 1443.4 | 0.8 | 50 | 1500 | 4450*2000*2300 | 8100 |
COMLER900KW | Comler | YC6C1520-D31 | 1016KW | electronic unit pump | Yuchai | 400/230 | 1623.8 | 0.8 | 50 | 1500 | 4650*1800*2500 | 8500 |
COMLER1000KW | Comler | YC6C1660-D31 | 1110KW | electronic unit pump | Yuchai | 400/230 | 1804.2 | 0.8 | 50 | 1500 | 4650*1800*2500 | 10500 |
COMLER1100KW | Comler | YC12VTD1830-D30 | 1220KW | Electronically controlled Common rail | Yuchai | 400/230 | 1984.6 | 0.8 | 50 | 1500 | 4310*2100*2570 | 12000 |
COMLER1200KW | Comler | YC12VTD2000-D30 | 1345KW | Electronically controlled Common rail | Yuchai | 400/230 | 2165.1 | 0.8 | 50 | 1500 | 4310*2100*2570 | 12300 |
COMLER1350KW | Comler | YC16VTD2270-D30 | 1520KW | Electronically controlled Common rail | Yuchai | 400/230 | 2435.7 | 0.8 | 50 | 1500 | 5060*2420*2760 | 13000 |
COMLER1500KW | Comler | YC16VTD2510-D30 | 1680KW | Electronically controlled Common rail | Yuchai | 400/230 | 2706.4 | 0.8 | 50 | 1500 | 5300*2500*2760 | 13500 |
COMLER1700KW | Comler | YC12VC2700-D31 | 1805KW | electronic unit pump | Yuchai | 400/230 | 3067.2 | 0.8 | 50 | 1500 | 5900*2400*2785 | 18500 |
COMLER1800KW | Comler | YC12VC3000-D30 | 2005KW | Electronically controlled Common rail | Yuchai | 400/230 | 3247.6 | 0.8 | 50 | 1500 | 6220*2450*2980 | 19500 |
COMLER2000KW | Comler | YC16VC3300-D31 | 2250KW | electronic unit pump | Yuchai | 400/230 | 3608.5 | 0.8 | 50 | 1500 | 7200*2850*3050 | 23400 |
COMLER2200KW | Comler | YC16VC3600-D31 | 2405KW | electronic unit pump | Yuchai | 400/230 | 3969.3 | 0.8 | 50 | 1500 | 7800*2715*3265 | 25800 |
COMLER2400KW | Comler | YC16VC4000-D31 | 2673KW | electronic unit pump | Yuchai | 400/230 | 4330.2 | 0.8 | 50 | 1500 | 7800*2715*3265 | 27000 |
