COMLER Intelligent Automatic Generator Power Supply System (Engineer XEL)

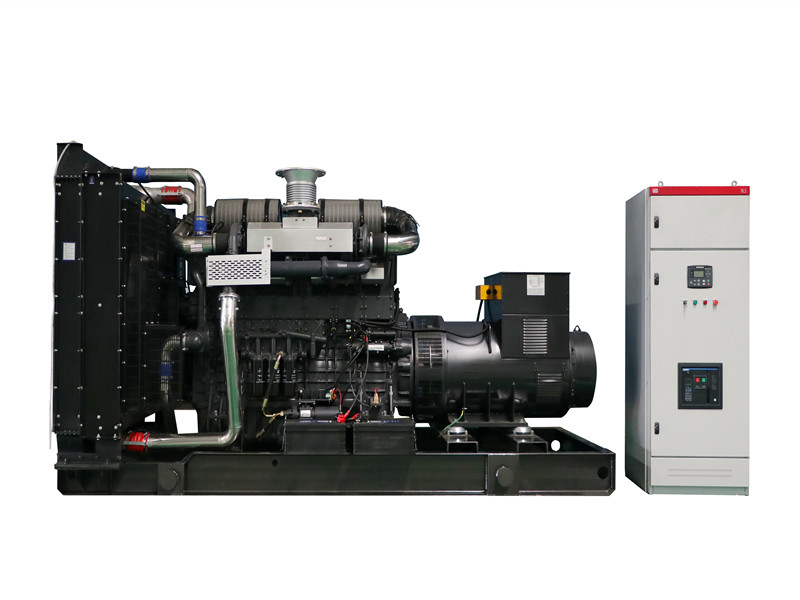

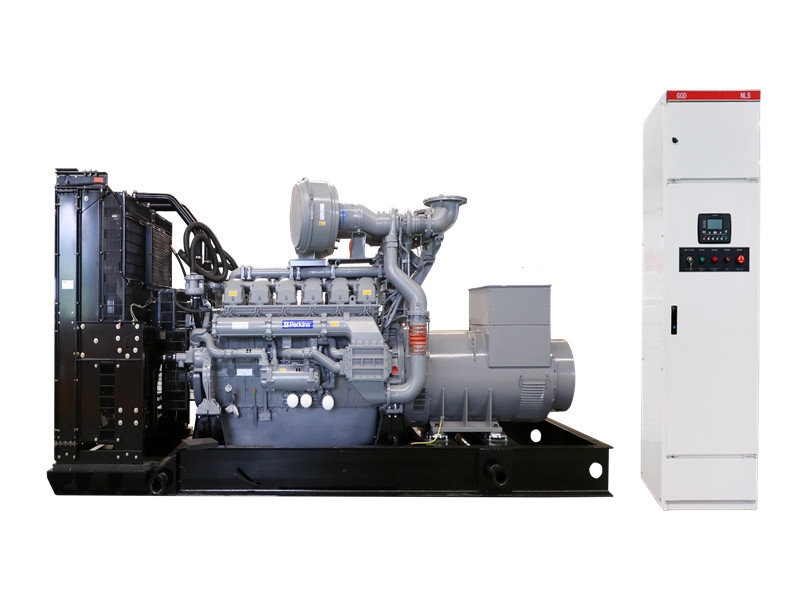

The COMLER intelligent automatic generator set adopts a GGD cabinet as the overall framework. The system adopts the 5th generation interconnected microcomputer intelligent control system of COMLER and the British deep-sea microcomputer automation digital high-performance control system, equipped with ATS and high-performance intelligent electrical system. The unit automatically starts and stops, switches between mains power and electromechanical power, and monitors the operation status of the unit without human supervision. It has four protection and multiple protection functions, and can digitally display various data of the unit, including line voltage, line current, output power, power factor, frequency reverse power, undervoltage, overcurrent, etc. Oil engine section: displays oil pressure, water temperature, oil temperature, speed, etc. The GGD cabinet is produced using an automated sheet metal production line, designed with a reasonable structure according to power requirements. The cabinet is also treated with anti-corrosion measures and can be combined with multiple cabinets. The automated intelligent control system has two modes: automatic and manual. With the grid connected system, it can supply power to the load together with the city grid and has remote service function.
The product has undergone comprehensive and rigorous testing and passed the CQC quality certification of China Quality Certification Center.
1.The functions of COMLER fully automatic generator set
COMLER fully automatic generator sets are widely used in schools, hospitals, hotels, buildings, real estate, information centers, industrial and mining enterprises, and other power users for emergency power supply after power outages. The product has strong breaking ability, good dynamic and thermal stability, flexible electrical action, convenient combination, strong series and practicality, novel structure, and high protection level.
2.Advantages
Technical parameters:
Serial Number | project | Technical Parameter |
1 | rated voltage | 380V(400V)、660V |
2 | Rated current | 2400~6300A |
3 | Rated short circuit breaking current | 350-80KA |
4 | Rated short-time withstand current | 450-80kA |
5 | Rated peak withstand current | 5105kA |
6 | protection grade | IP30 |
(1). Technical Performance: It adopts the Kangmler fifth generation interconnected microcomputer intelligent power supply system with superior performance and technology, as well as the British deep-sea generator control system.
(2). Advantages of operation display: microcomputer operation template, LCD display, with backlight, realizing the self starting and self stopping functions of the unit.
(3). Protection: With four protection functions, the mains power has overvoltage, undervoltage, and missing item detection functions, and the power generation has overvoltage, undervoltage, overclocking, and overcurrent detection functions.
(4).Technological updates: Upgrading software versions, customers can upgrade versions as needed to meet technical requirements.
(5). Language : 13 languages, meeting the needs of customers in different languages.
(6). Working mode: 4 sets of working modes and protection parameters can be set.
(7).Regular self maintenance: It can preset the operating time (the unit can be started regularly for maintenance operation) and maintenance cycle function.
(8).Remote control: It can achieve remote monitoring of the system, with RS485 transmission distance up to 1200 meters. DSE7320+DSE890 can achieve network monitoring.
(9). Safety: Passed CQC quality certification by China Quality Certification Center.
(10). Intelligent interconnection: the deep combination of people and units, Internet plus+generators, the mutual combination of Internet technology and generators, to achieve remote management and uninterrupted service of units, so that units can operate more efficiently. Save a lot of manpower, material resources, and financial resources, and continuously create value for customers.
3、 The product meets national standards
ISO 8528:5-2013 | Reciprocating internal combustion alternating current generator sets - Part 5: Generator sets |
GB 7251-2013 | Low voltage switchgear and control equipment |
GB/T 20641-2014 | General Requirements for Empty Enclosures of Low Voltage Switchgear and Control Equipment |
JB/T 4129-1999 | Burr Height of Stamped Parts |
GB 7251.12-2013 | Low voltage switchgear and control equipment - Part 2: Complete sets of power switchgear and control equipment |
GB/T 2820 | AC generator sets driven by reciprocating internal combustion engines |
GB/T 15548-2008 | General conditions for three-phase synchronous alternating current generators driven by reciprocating internal combustion engines |
GB/T 12786-2006 | General technology Conditions for Automatic Internal Combustion Engine Power Station |
GB/T 4712-2008 | Classification Requirements for Automatic Diesel Generator Sets |
The COMLER intelligent interconnected fully automatic power supply system has superior technical performance, making it a necessary choice for high-quality users. It is an ideal power supply product for users in various industries, and the Comler automated power supply system is a core electrical automation technology competitor.
