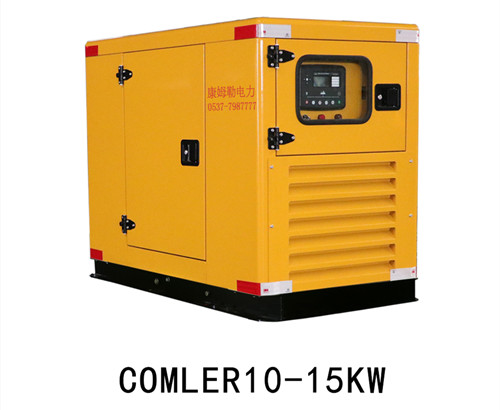

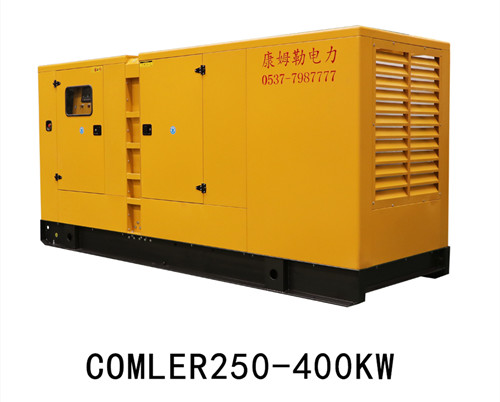

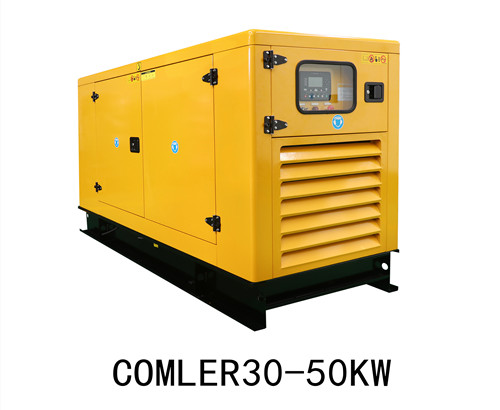

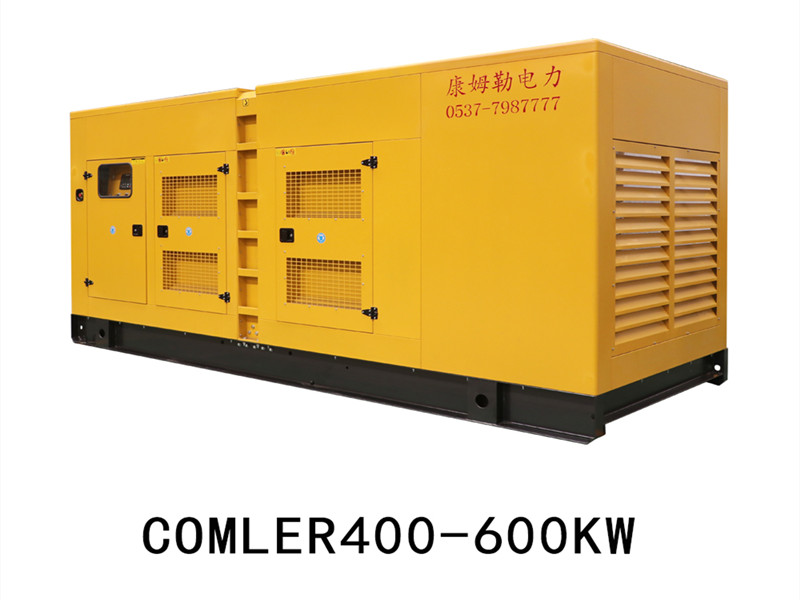

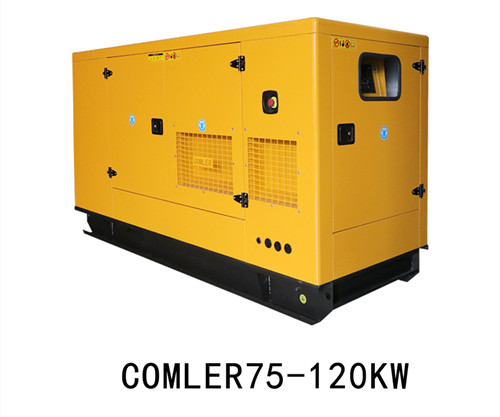

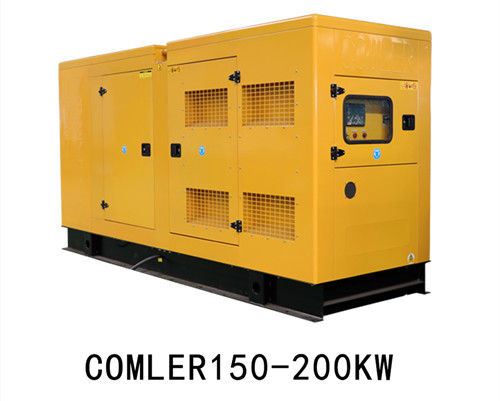

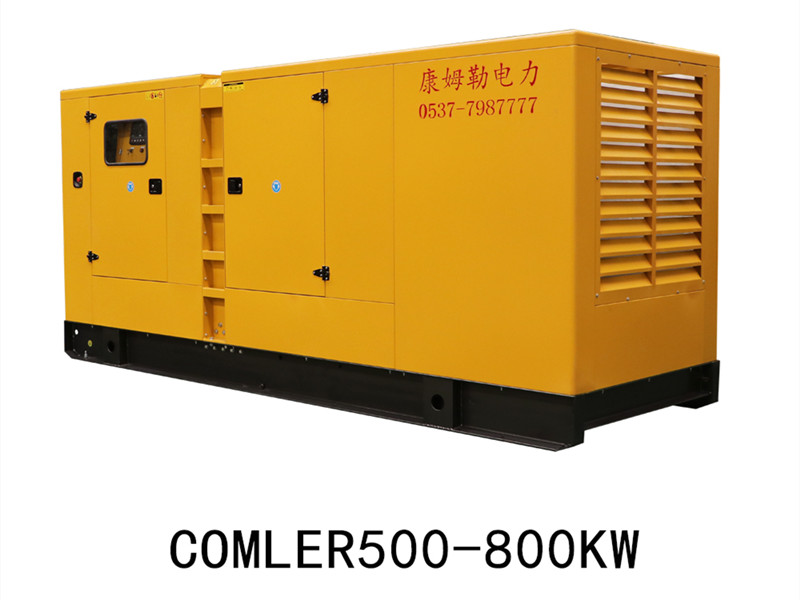

COMLER-SILENT GENERATOR SET DESCRIPTION (ENGINEER LKF)

COMLER always dedicate to the research and development, production and manufacturing of silent generator set, ultra-silent units, and silent machine rooms. There is established the COMLER International Silent Unit Research and Development Center and Laboratory, becoming a platform for silent unit research, design, and technical exchanges. We has conducted in-depth technical exchanges with business parnters at international exhibitions such as the BMW Exhibition, Dubai Power Exhibition, Indonesia Power Exhibition, and Thailand Power Exhibition, always standing on the international exchange platform and contributing to the technological development and progress of silent units.

1.Application

The COMLER silent generator sets are widely used in industries with high noise requirements such as highways, railways, oil fields, urban construction, emergency response, commercial centers, office buildings, schools, hospitals, hotels, factories, and rental markets. They have been highly favored by users. The COMLER R&D center is also responsible for developing high-quality noise-proof enclosures for international generator companies and has maintained long-term strategic cooperation with international generator manufacturers in Southeast Asia, the Middle East, Central Asia, and Africa. COMLER Power Silent System - The Source of Power.

2.Design Solution Advantages

The COMLER silent generator set is designed to meet the environmental protection requirements of cities and various industries. Its appearance adopts a sleek and streamlined design similar to that of a car, making it beautiful and elegant. It is equipped with an intake noise reduction chamber, an exhaust noise reduction chamber, an exhaust noise reduction system, and a complete intake air flow curve design, ensuring smooth intake and exhaust, temperature control, and noise reduction. Special noise reduction and sound insulation materials are used, which greatly control the extension of mechanical noise and can reduce the noise to below 75 dB, as well as providing functions such as rainproof, dustproof, and insulation.

The large-capacity base oil tank can meet the continuous operation of the generator set for 8 to 24 hours.

The box body of the silent generator set is equipped with observation windows, control panels, an external emergency stop button, an external fuel filling port, and oil level display facilities all on one side of the equipment. The scientific and user-friendly design is convenient for operation, running, and maintenance.

3.Technical Advantages

Technical Advantage: The COMLER silent system is entirely designed with the LKF modular approach. Each workpiece is precisely manufactured through a single stamping process according to the design specifications, ensuring standardized production of each workpiece. Each product is of a standard quality. Each well-designed workpiece is composed of multiple components connected and combined by high-strength stainless steel bolts, significantly enhancing production efficiency, improving product assembly rate, and ensuring superior quality.

（1) Advantages in fastening: The external connecting bolts of the static enclosure are made of national standard stainless steel, which significantly enhances the rust resistance of the product in extremely harsh usage environments. The product remains as new even after being used for many years.

(2) Advantages in door and window sealing: Five seamless hinges made of carbon steel and high elasticity sealing rubber strips are used, resulting in better sealing of the gaps.

(3) Advantages in weather resistance of the lock: The static enclosure uses high-performance carbon steel door locks, making the opening more convenient and improving the weather resistance performance of the entire machine.

(4) Advantages in box strength: The main components of the static enclosure are made of standard national standard galvanized plywood and die-casting molds, significantly enhancing the overall strength and service life of the product.

(5) Advantages in anti-corrosion: The outer cover is made of galvanized sheet and treated specially, and is formed by electrostatic spraying and high-temperature melting casting, greatly enhancing the rust resistance. The generator and electrical components are encapsulated in a sturdy silent system, ensuring your power supply in various harsh external environments.

(6) Advantages in noise reduction: The silent unit has a noise level of 75dB or below, meeting international standards; the ultra-silent unit has a noise level of 65dB or below, meeting high standards.

(7) Advantages in appearance: The sleek and streamlined design of the car-like shape is beautiful and elegant, with a high protection level.

(8) Advantages in box size: The module is finely designed, and units below 50KW can be stacked and loaded. It fully considers issues such as maritime container loading, with a more optimal container occupation space, smaller occupied area, and lower space area and transportation costs.

(9) Advantages in lifting: Each device can be moved at the bottom and top, making the handling more convenient and effectively reducing handling costs.

(10) Advantages in working mode in high-temperature environments: The excellent ventilation system design and heat radiation prevention ensure that the unit always operates in an appropriate environmental temperature. Each silent product undergoes strict wind resistance tests, resonance tests, and temperature tests to ensure excellent operation, stable and reliable performance.

(11) Advantages in unit stability: Mechanical design measures for vibration reduction are adopted, with higher bearing strength components, reducing resonance of the unit, and ensuring smooth operation of the unit.

(12) Advantages in intelligent interconnection: Deep integration of human and unit, Internet + generator, with a good combination of Internet technology and generator, achieving remote management and uninterrupted service of the unit, making the unit operate more efficiently. It saves a lot of manpower, material resources, and financial resources, creating value for customers.

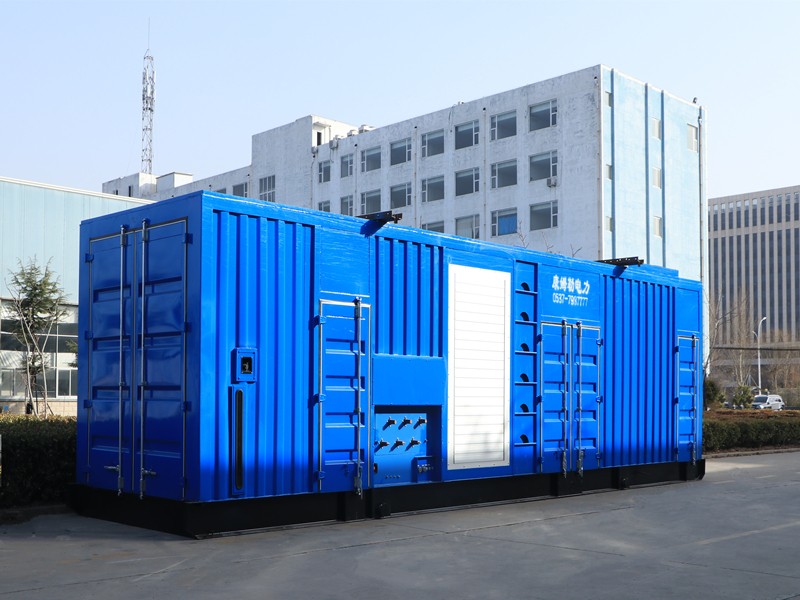

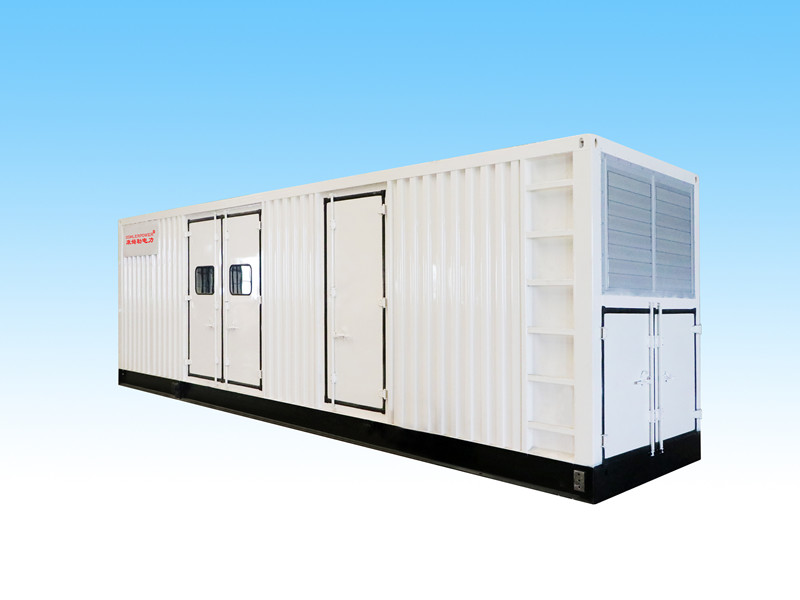

 COMLER- Container Type Silent Generator Set

1.  COMLER- Container Type Silent Generator Set (Engineer LKF)

The COMLER new frame-type environmentally friendly container silent generator room adopts an overall frame structure, modular design for production and assembly. It is equipped with an intake noise reduction room, an exhaust noise reduction room, and an exhaust noise reduction system. It features rainproof, dustproof, noise reduction, heat insulation, sound absorption, high-temperature resistance materials, and a perfect intake air flow curve design, ensuring smooth intake and exhaust, temperature control, and noise reduction. The designed power range is 1000KW - 2400KW, and it can be customized according to requirements. The container-type generator sets greatly facilitate transportation and provide favorable conditions for placement or handling during use.

l The excellent ventilation system and heat radiation prevention facilities ensure that the unit always operates in an appropriate environmental temperature.

l The special flame-retardant, noise-reducing, and insulation materials, combined with the porous galvanized steel plate, form a composite noise reduction box, which significantly reduces the mechanical noise of the power generation unit during operation.

l The adoption of mechanical design shock absorption facilities and high-energy shock absorption measures ensures the balanced operation of the unit.

l The silent power generation unit box is equipped with observation windows, control panels, emergency stop buttons, fuel injection ports, and oil level displays, etc. The scientific and user-friendly design facilitates operation, running, and maintenance.

l Locks, hinges, etc. are selected from standard container accessories, making the product more standardized.

l The steel of the box is all subjected to sandblasting rust removal, and the coating uses an epoxy resin system. The primer and intermediate coat are matched, and zinc powder cathodic protection is adopted to enhance the corrosion resistance; the topcoat uses modified epoxy resin or polyurethane system, balancing wear resistance and weather resistance.

l Reasonable air intake and exhaust design better meets the requirements for long-term continuous operation of the power generation unit; it can also be customized with electrically operated louvers for air intake and exhaust, which are linked with the power generation unit. The louvers will automatically open when the unit starts and close when it stops to prevent dust from entering, and the sealing is better when the unit is off.

l Optional installation of a black smoke static treatment system to meet higher environmental protection requirements in the region.

l To meet the requirements of environmental noise reduction, an optional heavy-duty muffler can be installed for secondary circulation noise reduction, resulting in better noise reduction effect.

2.  Pedestal Characteristic

COMLER standard base is with an oil tank at the bottom. The silent unit base is manufactured as a whole on an automated production line and is calibrated by a balance instrument. The entire unit is equipped with shock absorption devices, ensuring stable and reliable operation. The base is made of cast thick-section profiles, with higher strength and excellent overall performance.

1. Design Advantage: The base of the unit is produced through a three-dimensional design based on mechanical principles, resulting in higher bearing strength.

2. Material Advantage: The base frame is made of high-strength castings to prevent deformation of the base and ensure zero error in the concentricity of the engine and generator.

3. Cutting Advantage: The profiles are automatically cut by a fully automatic cutting robot, ensuring accurate dimensions, efficient operation, and smooth cutting surfaces.

4. Welding Advantage: The entire unit is welded using a welding robot, ensuring strong and reliable performance.

5. Anti-corrosion Advantage: The frame undergoes strict shot blasting and sandblasting treatment, and the topcoat uses an epoxy resin system, with a matching primer and intermediate coat. Zinc powder cathodic protection enhances the anti-corrosion property; the topcoat uses modified epoxy resin or polyurethane systems, balancing wear resistance and weather resistance.

6. Fuel Tank Advantage: The base fuel tank is made of national standard high-strength plates, double-sided welding, with airtightness testing to prevent leakage, an 8-hour fuel reserve, and greater convenience for long-term use.

7. Performance Advantage: The entire unit is manufactured on the automatic production line of COMLER 4.0 factory, ensuring superior performance and standard quality.

8. Efficiency Advantage: The intelligent production line efficiently produces and quickly provides supply services.

9. Equipment Advantages: The base of the equipment is manufactured in the COMLER Sheet Metal 4.0 automated production factory. The equipment includes:

① CNC Laser Cutting Machine: Ensures 0 error in dimensions, and performs high-speed cutting to prevent deformation;

② KUKA Robot Bending Center: Ensures consistency of each bending component;

③ Panasonic Robot Welding Center: Ensures firm connection of each component;

④ Automatic Shot Blasting Machine: Performs strict decontamination on the external parts of the components;

⑤ CNC Balancing Instrument: Conducts strict verification after the components are formed.

10. Noise reduction and heat insulation advantages: Utilizing high-density flame-retardant noise-reducing materials, it is resistant to high temperatures and offers better noise reduction and heat insulation effects.

3.Standard Conformance

ISO 8528:5-2013  《RECIPROCATING INTERNAL COMBUSTION ALTERNATING CURRENT GENERATOR SET  PART 5: GENERATOR SET》

GB/T 2820  《AC GENERATOR SET DRIVEN BY RECIPROCATING INTERNAL COMBUSTION ENGINE》

GB/T 21425-2008  《NOISE REQUIREMENTS AND MEASUREMENT METHODS FOR LOW-NOISE INTERNAL COMBUSTION ENGINE POWER STATIONS》

GB/T 15548-2008  《GENERAL CONDITIONS FOR THREE-PHASE SYNCHRONOUS AC GENERATORS DRIVEN BY RECIPROCATING INTERNAL COMBUSTION ENGINES》

Noted: As the products are constantly being updated, for detailed technical information, please contact the company's sales representatives by phone.
